  • Stationary transducers with bench stands

Our transducers are manufactured from stainless steel, precision machined, strain gauged and thoroughly tested in our calibration laboratory for accuracy and repeatability.

Features

  • Bench stand machined from billet aluminum.
  • Designed for mounting in vertical or horizontal orientation to facilitate tool testing.
  • Readily accepts rundown fixtures for testing power tools.
  • Our Intellect transducers are "plug and play" with AWS instruments.
  • AWS transducers are calibrated CW and CCW for bidirectional use.

Specifications

±0.5% of indicated reading, top 90% of range, above 50 Ozf In
150% of full scale

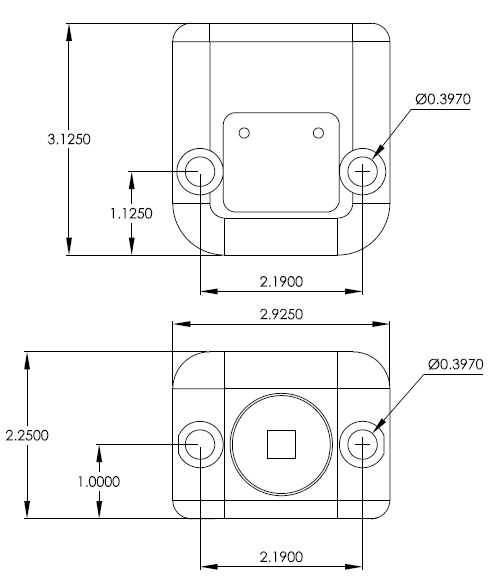

2.925"w x 2.250"h x 3.125"d Mounting Diagram

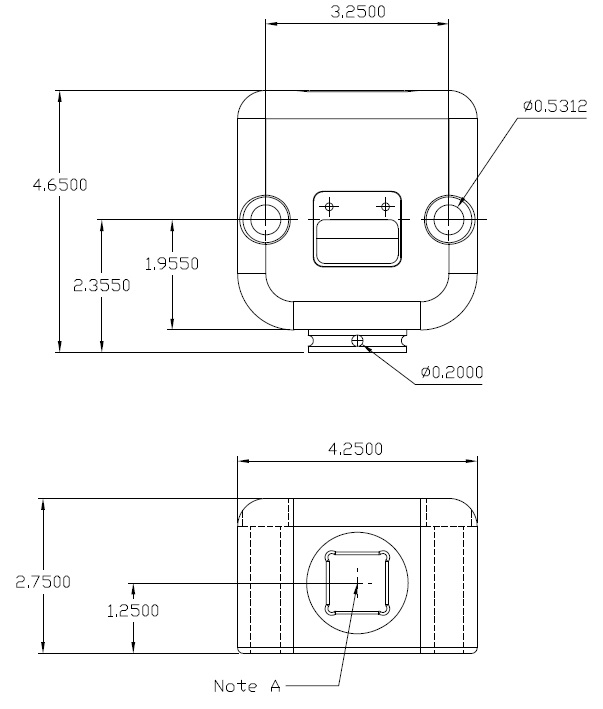

4.250"w x 2.750"h x 4.650"d Mounting Diagram

Downloads

ManualFlyerDrawing

Options

Mounting

The AWS stationary transducers are mounted in a housing (AWS refers to this as a bench stand) that is designed with through holes for mounting to a bench or a mounting plate. The design allows the user to mount the transducer in a vertical or horizontal orientation to suit their specific tool testing. There are two standard sizes: one small housing for all transducers up to 250 Lbf Ft and the large housing for transducers up to 2000 Lbf Ft.

Accessories

AWS stationary transducers are supplied with internal square drives: 1/4", 3/8", 1/2", 3/4" and 1" depending on torque capacity. Various rundown fixtures are available that are designed to fit into the internal square drive providing a means of testing power tools. View Rundown Fixtures
